TECH Processing & Control

MEASUREMENTS
445mm x 178mm x 593mm

WEIGHT
16.8kg

VOLTAGE
100-240V, 50-60Hz

OPERATING SYSTEM
Windows Enterprise SAC

CPU
Intel® Xeon® Quad-Core 3.7Ghz

MEMORY
64GB DDR4 RAM

ENVIRONMENTAL TOLERANCES
Temperature: 5-35°C (40°-95°F)
Humidity: 5%-95% (non-condensing)
Altitude: 0-8850ft (0-2700m)

MOUNTING SYSTEM
4U19”rackmount

AUDIO
RME Professional

OS
2x80GB SSD
(Internal System Drive,Restore Drive)

STORAGE
4TB SSD

VIDEO OUTPUT
1x DisplayPort 1.2 (GUI)
2x VFC Output Slots
Ships standard with HDMI 2.0 VFC cards
Different Video Format Conversions cards also available, refer to VFC Specifications

VIDEO INPUT
8x3G-SDI or 2×2 160p (Quad Split)
(HD-BN Cconnectors)

ANALOGUE AUDIO
2x Balanced XLR Output
2x Balanced XLR Input
1x 1/4″ Headphones Jack

DIGITAL AUDIO
ADAT/SPDIF I/O
MIDI
1x In, 1x Out

GENERAL NETWORK
1x Gigabit LAN

ARTNET
1x Gigabit LAN

MEDIA NETWORK
2x 10Gb/sec LAN

DATA/PERIPHERALS
5x USB3.0

VIDEO SYNC
BNC Genlock

WARRANTIES
2 year return to base hardware
warranty(plus options to extend)

BUNDLED ACCESSORIES
Keyboard, Mouse & Pad, Power Cable
(Plug-True1), Power Daisy Chain
(True1-True1), Active DP to DVI adapter, Getting Started Guide + Manual, Back Mounted Rails.

SOFTWARE
Disguise full production suite
Notch Playback License (2years)

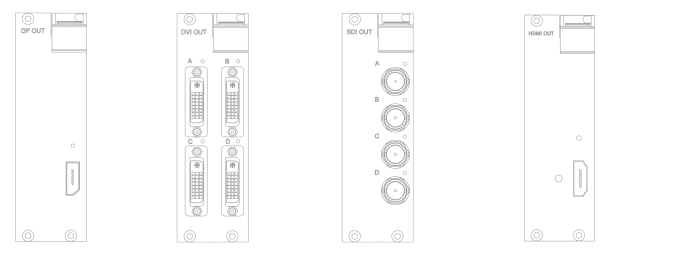

DISPLAY PORT

DP 1.2 (max: 4096 x 2160 @60 YCbCr444 10bit)
Genlocked LED indictor

QUAD DVI

4 x Dual-Link DVI (max: 1920×1200 @60 YCbCr444 8bit) (max: 2048×1080 @60 YCbCr444 8bit)
All outputs Genlocked
LED indicator

QUAD SDI

4 x 3G-SDI (max: 2048×1080 @60
YCbCr422 10bit)
All outputs Genlocked LED indicator

HDMI

HDMI 2.0
(max: 4096×2160 @60 YCbCr444 8bit)
(max: 3840×2160 @60 YCbCr422 10bit)
(max: 3840×2160 @30 YCbCr444 10bit)
HDR Ready
Genlocked

MEASUREMENTS

431.8mm x 88.9mm x 508.0mm Rear width: 482.6mm

WEIGHT
7.50Kg

ELECTRICAL

Switched autoranging power supply 100 – 240V AC
50Hz – 60Hz
1.2 – 0.6A

HDMI 2.0 INPUT & RE-CLOCKED THRU PORT

1 x HDMI 2.0 input
Full 18Gbps HDMI 2.0 bandwidth, maximum 600MHz pixel clock
Up to 4096 x 2160 resolution (progressive only) 23.98Hz to 60Hz framerate
8, 10 and 12 bits per channel colour depths
RGB and YCbCr 4:4:4, 4:2:2 and 4:2:0
Compatible with DVI-D and Displayport sources via adapters

SDI INPUT & RE-CLOCKED THRU PORT

1 x 12G SDI input that supports the following:

-HD-SDI – ST-292
-3G-SDI – ST-424, Level A and Level B-DL
-6G-SDI – ST-2081
-12G-SDI – ST-2082, 2SI format

Upto 4096 x 2160 resolution (progressive only) 23.98Hz to 60Hz framerate
10 bits per channel colour depth YCbCr 4:2:2

OUTPUTS

Four 10GBASE-T copper output ports
Supports nominally 9 million pixels at 36 bits per pixel @ 60Hz
Supports Neutrik etherCON Cat 6A / etherCON (CAT5e) connectors
Compatible with standard Cat6A / Cat5e RJ45 connectors
Requires Cat6A cable (up to 60m) or Cat5e cable (upto 30m)
4 x 10GBASE-LR Tessera XD fibre output ports Supports Neutrik optocalCON DUO / DUO ARMORED / DUO X-TREME /DUO LITE connectors Compatible with standard LC-Duplex connectors Requires 1310nm, 9/125um single-mode fibre (up to 2KM) with PC or UPC connectors
Each 10G output independently auto-switches between fibre and copper
Closed loop redundancy support Processor redundancy support

GENLOCK

Bi-level and Tri-level sync Sync to source
Processors genlock from source right through to panel refresh
Frame rates from 23.98 to 60Hz

LATENCY

2 frames end-to-end system latency (all features)

TESSERA MANAGEMENT SOFTWARE

Local management using monitor, keyboard and mouse connected directly to processor Upto 3840 x 2160 local monitor resolution supported, minimum 1920 x 1080 recommended

TESSERA REMOTE

Available free for Windows PC and Mac OS Remote management using Windows PC or MAC connected to processor via Ethernet network
Two Gigabit Ethernet management network ports

REMOTE CONTROL

Support for eDMX protocols:

-Art-Net, Streaming ACN
-DMX-512A on 5-pin XLR in and thru
-Tesera Control application for multi-processor control via management network ports

I/O

Two USB 2.0 ports on front Two USB 3.0 ports on rear
One DisplayPort (DP++) monitor output supporting HDMI, DVI and VGA with adapter

FRONT PANEL

Six status LEDs Power LED Freeze button Blackout button

WARRANTY

Two years

CERTIFICATIONS

CE, ETL/cETL

MEASUREMENTS

178mm x 483mm x 622mm

WEIGHT

31Kg

ELECTRICAL

Input power: 100-240 VAC 50/60Hz 826W
Ships with dual-redundant, hot-swappable power supplies

LIVE EFFECTS CANVAS

Up to 20 Megapixels PVW/PGM
40 Megapixels PGM only 80 Megapixels @30p and PGM only

VIDEO INPUTS

32 inputs via 8 input cards (Event Master series cards)
Up to 8 x 4K inputs – each input card supports up to [email protected] p 12 x SD/HD/3G SDI
10 x HDMI 1.4a (297 Mpix/sec max)
10 x DisplayPort 1.1 (330 Mpix/sec max)

VIDEO OUTPUTS

14 outputs via 4 output cards (Event Master series cards)
Up to 3 x 4K outputs – each output card supports up to [email protected] p 4 x SD/HD/3G SDI
8 x HDMI 1.4a (297 Mpix/sec max
2 x HDMI 1.4a for Multiviewer (297 Mpix/sec max)

GENLOCK

Analog reference input/loop on BNC connectors; bi-level and blackburst at SD and tri-level at HD
S3D Sync: 4 x input Din connector, 2 x output Din connector

PROGRAM OUTPUT

Up to 16 program outputs configurable as single screens or tiled/blended widescreens (preview and Multi-Viewer not available in all configurations) – Configurable for up to 16X [email protected] or up to 4 x 4096 x [email protected] – independent edge blending/feathering control for all four sides

SCALED AUX OUTPUTS

User definable for up to 16 x 2048 x [email protected] or up to 4 x [email protected] All outputs can be defined as AUX destinations for a total of 16 Aux outputs Output colour correction (preview and Multi-Viewer not available in all configurations)

MIXERS

User definable for up to 16 x 2048 x [email protected] or up to 4 x [email protected] All outputs can be defined as Aux destinations for a total of 16 Aux outputs Output colour correction (preview and Multi-Viewer not available in all configurations)

STILL STORES

Up to 100 HD or 25 UHD, depending on the import file size

LAYER EFFECTS

Borders (hard, soft, halo) and drop shadows Colour effects
Strobe, H&V flip
Luma, chroma and Cut/Fill keys (not all modes support keyring
PIP moves via Keyframes

MULTIVIEWER

Flexible user-definable layouts
Monitor all inputs and Outputs, including Preview and Aux Two outputs
Dedicated hardware

EXPANDABILITY

Easily expandable for larger display applications via proprietary links
Link units to increase available inputs and outputs for larger tiled/blended widescreen applications
Expansion via simple linking – up to 8 chassis
E2 ships with the ability to link 8 chassis for expansion

HDCP

HDCP compliance determined by installed cards

CONTROL

Event Master screen management software for PC or MAC Event Master controllers
WebUI
Ethernet RJ-45, 1000/100/10 Mbps autosense

SERVICEABILITY

Field-Serviceable I/O and processing cards (not hot-swappable)
Hot-swappable dual-redundant power supplies

NOISE LEVEL

Max 52.9 dB avg. Fans at 100%. Fan speed is software-managed based on operating temperature.
Reference is ISO 7779

WARRANTY

3 years parts and labor

ENVIRONMENTAL TEMPERATURE

0-40° C / 32-104 F

ENVIRONMENTAL HUMIDITY

0-95% non-condensing

MEASUREMENTS

431.8mm x 88.5mm x 209.6mm

WEIGHT

3.7Kg

ELECTRICAL

Switched autoranging power supply 100 – 240V AC
50Hz – 60Hz
0.4 – 0.2A
PowerCON TRUE1 locking connector with through port for daisy-chaining power (16A maximum)

INPUTS

1 x 10G Tessera Protocol copper input for connection from SX40
Supports Neutrik etherCON Cat 6A / etherCON (CAT5e) connectors
Compatible with standard Cat6A / Cat5e RJ45 connectors
Requires Cat6A cable (up to 60m) or Cat5e cable (upto 30m)
1 x 10G Tessera Protocol fibre input for connection from SX40
Supports Neutrik optical CON DUO / DUO ARMORED/ DUO X-TREME / DUO LITE connectors Compatible with standard LC-Duplex connectors
Requires 1310nm, 9/125um single-mode firbre (up to 2KM) with PC or UPC connectors
10G Tessera Protocol thru for daisy-chaining of up to five additional XDs with shared bandwidth
Auto-switching between fibre and copper
Thru port auto-switches independently from input

OUTPUTS

10 x 1G Tessera Protocol output ports for connection to fixtures
Neutrik etherCON connectors, compaitble with standard RJ45
Each 1G output is capable of 525K pixels at 8bpc, 60Hz
Pixel capacity per 1G port scales according to selected bit depth and framerate

FRONT PANEL

Capacitive touch LCD screen

WARRANTY

Two years

CERTIFICATIONS

CE, ETL/cETL

MEASUREMENTS

482.6mm x 88.9mm x 508.0mm Rear width: 431.8mm

WEIGHT

9kg

ELECTRICAL

Switched autoranging power supply 100 – 240V AC
47Hz – 60Hz
1 – 0.5A

DVI-I INPUT

1 x DVI-I input
Up to 1920 x 1080 at 60Hz
Non standard resolution support for : 1600 x 1200, 2880 x 720, 720 x 2880 and 1080 x 1920
Support for RGB and YCbCr colour spaces DVI-DDVI-A VGA/RGBHV
YPbPr
HDMI support with suitable adapter No HDCP support
With loop thru

SDI INPUTS

Two 3G SDI inputs with relocked loop thrus that support the following:
SD-SDI – SMPTE 259M-C:
576i50 4:2:2 10 bit YCbCr
486i59.94 4:2:2 10 bit YCbCr HD-SDI – SMPTE 292M
720p23.98/24/25/29.97/3050/59.94/60 10 bit YCbCr
1080i50/59.94/60 4:2:2 10 bit YCbCr
1080p23.98/24/25/29.97/30 4:2:2 10 bit YCbCr
3G-SDI – SMPTE 425M-A/B:
1080p50/59.94/60 Level A 4:2:2 10 bit YCbCr
1080p50/59.94/60 Level B DL 4:2:2 10 bit YCbCr Two inputs can be used together to support Dual Link SDI – SMPTE 372M:
1080p50/59.94/60 4:2:2 10 bit YCbCr

OUTPUTS

Four 1 Gigabit Ethernet output ports each capable of a normal 525K pixels at 8 bits per colour,
60Hz frame rate
10 and 12 bits per colour output supported at reduced pixel counts

GENLOCK

BI-level and Tri-level sync Sync to source
Processors genlock from source right through to panel refresh
Frame rates from 23.98 to 60Hz

LATENCY

3 frame end-t-end system latency (all features) 2 frames end-to-end system latency in low-latency mode (restricted features)

TESSERA MANAGEMENT SOFTWARE

Local management using monitor, keyboard and mouse connected directly to processor Monitors from 1280 x 1024 up to 1920 x 1080 DP++ monitor output supports HDMI, DVI and VGA using a suitable adapter

TESSERA REMOTE

Available free for Windows PC and Mac OS Remote management using Windows PC or MAC connected to processor via Ethernet network
Two Gigabit Ethernet management network ports

I/O

Two USB 2.0 ports on front Two USB 2.0 ports on rear
One DisplayPort (DP++) monitor output

FRONT PANEL

Eight status LEDs Power LED

WARRANTY

Two years

CERTIFICATIONS

CE, ETL/cETL

MEASUREMENTS

482.6mm x 44.5mm x 342.9mm

WEIGHT

3.1Kg

ELECTRICAL

Switched autoranging power supply 100 – 240V AC
50Hz – 60Hz
0.4 – 0.2A

DVI-I INPUT

1 x DVI-D input
Up to 1920 x 1080 at 60Hz
Non standard resolution support for : 1600 x 1200, 2880 x 720, 720 x 2880 and 1080 x 1920
Support for RGB and YCbCr colour spaces HDMI support with suitable adapter
No HDCP support

OUTPUTS

Four 1 Gigabit Ethernet output ports each capable of a normal 525K pixels at 8 bits per colour,
60Hz frame rate
10 and 12 bits per colour output supported at reduced pixel counts

GENLOCK

Lock to source
Processors genlock from source right through to panel refresh
Frame rates from 23.98 to 60Hz

LATENCY

2 frames end-to-end system latency

TESSERA MANAGEMENT SOFTWARE

Local management using monitor, keyboard and mouse connected directly to processor Monitors from 1024 x 768 up to 1920 x 1080 DP++ monitor output supports HDMI, DVI and VGA using a suitable adapter

TESSERA REMOTE

Available free for Windows PC and Mac OS Remote management using Windows PC or MAC connected to processor via Ethernet network
One Gigabit Ethernet network port

REMOTE CONTROL

Tessera Control application for multi-processor control via management network port

I/O

Two USB 2.0 ports on front Two USB 2.0 ports on rear
One DisplayPort (DP++) monitor output

FRONT PANEL CONTROLS

Five status LEDs Power LED Freeze button Blackout button

WARRANTY

Two years

CERTIFICATIONS

CE, ETL/cETL

MEASUREMENTS
482.6mm x 44.5mm x 342.9mm

WEIGHT
3.1Kg

ELECTRICAL
Switched autoranging power supply 100 – 240V AC
50Hz – 60Hz
0.4 – 0.2A

DVI-D INPUT
1 x DVI-D input
Up to 1920 x 1080 @ 60Hz
Non standard resolution support for: 1600 x 1200, 2880 x 720, 720 x 2880 and 1080 x 1920
Support for RGB and YCbCr colour spaces HDMI support with suitable adapter
No HDCP support

OUTPUT
1 x 1G Tessera output port capable of a normal 525K pixels at 8 bits per colour, 60Hz frame rate

GENLOCK
Sync to source
Processors genlock from source right through to panel refresh
Frame rates from 23.98 to 60Hz

LATENCY
3 frames end-to-end system latency (all features) 2 frames end-to-end system latency in low-latency mode (restricted features)

TESSERA MANAGEMENT SOFTWARE
Local management using monitor, keyboard and mouse connected directly to processor Monitors from 1024 x 768 up to 1920 x 1080 DP++ monitor output supports HDMI, DVI and VGA using a suitable adapter

TESSERA REMOTE
Available free for Windows PC and Mac OS Remote management using Windows PC or MAC connected to processor via Ethernet network
One Gigabit Ethernet network port

REMOTE CONTROL
DMX-512A on 5-pin XLR in and thru
Tesera Control application for multi-processor control via management network port

I/O
Two USB 2.0 ports on front Two USB 2.0 ports on rear
One DisplayPort (DP++) monitor output

FRONT PANEL
Seven status LEDs Power LED

WARRANTY
Two years

CERTIFICATIONS
CE, ETL/cETL

Brompton Technology’s Tessera R2 receiver card takes a new module-based design approach to produce the most powerful ever LED panel receiver card.

Now an industry standard, R2 uses cutting-edge technology to ensure a perfect combination of capacity, size and features.

Supporting 262k output pixels, it is ideal for all types of panels, including sub-2mm fine pitch products.

The R2 works with all Tessera processors, which are packed with industry-leading features such as Brompton’s intuitive software system, built-in scaling, extensive colour adjustments, flexible output mapping, and live control over DMX. Other advanced features include:

• Superior greyscale performance – Especially when the LED panels are run at low brightness as is typical in many studio applications
• Module storage – Reading calibration data from the LED modules so modules can be swapped without having to recalibrate
• Advanced calibration options – Allowing video engineers to make on-site tweaks, for example applying edgecorrection to compensate for mechanical seams between panels using On-Screen Colour Adjustment (OSCA).

GIGABIT ETHERNET

All processors in the Tessera family communicate via Gigabit Ethernet with LED panels fitted with Tessera receiver cards. Off-the-shelf Gigabit Ethernet networking equipment and cabling can be used.

DESIGN SUPPORT

Reference designs are provided to aid hub board design, and our multilingual Field Application Engineers are always available to support the integration of new panels remotely or locally from our Shenzhen office.

SMALLER FORM FACTOR

Measuring just 68x32mm and using the widely available
DDR2 SO-DIMM socket to integrate it, the compact form factor of the R2 module effortlessly fits in small hub board designs that continue to decrease in size.

Specifications

PROCESSING

262,144 RGB pixels capacity 16 bit-per-channel processing

NETWORK

Two Gigabit Ethernet data connections

MECHANICAL

DDR2 SO-DIMM form factor

OUTPUTS

All major driver ICs supported Up to 72 output data channels

SENSORS & UI

Support for sensors (e.g. temperature) Support for user interfaces (e.g. status LEDs, push buttons)

The race for resolution is not the most important race any more. Beyond a certain point, fine pixel pitches in LED panels can do more harm than good, to both budget and performance.

High Dynamic Range video offers a new approach, and when done properly it’s a sure-fire route to sharper, more vivid, and more lifelike images.

Recent technology demos have shown that with the right LED panels, the right processing system, and the right calibration techniques, HDR can offer a huge step up in image quality on LED screens.

Rather than simply another increase in resolution, High Dynamic Range (HDR) video brings a trio of image quality improvements that are particularly well-placed to be the next big thing for LED screens.

For every pixel, HDR describes a larger brightness range, a wider colour gamut, and a higher bit depth. The brightness range offered by conventional Standard Dynamic Range (SDR) video’s ‘gamma curve’ – the transfer function that encodes luminance or brightness into a video signal – doesn’t get close to exploiting the 10,000:1 brightness range perceptible by the human visual system.

To improve this, we have to expand the brightness range by breaking away from that basic gamma curve. Putting all this together, HDR is potentially fantastic news for LED screens.

First, LEDs can offer the brightness range necessary to display HDR content, which is typically thousands of Nits (cd/m2), and modern high-quality RGB LEDs are capable of a colour gamut approaching that of Rec.2020, ensuring saturated colours can be faithfully reproduced. Independent control over every LED means we can reproduce the full brightness range without losing detail, and with perfect blacks and no backlight bleed, LED screens generate far fewer undesirable artefacts than many other technologies
