Control That Powers Extraordinary Visuals.

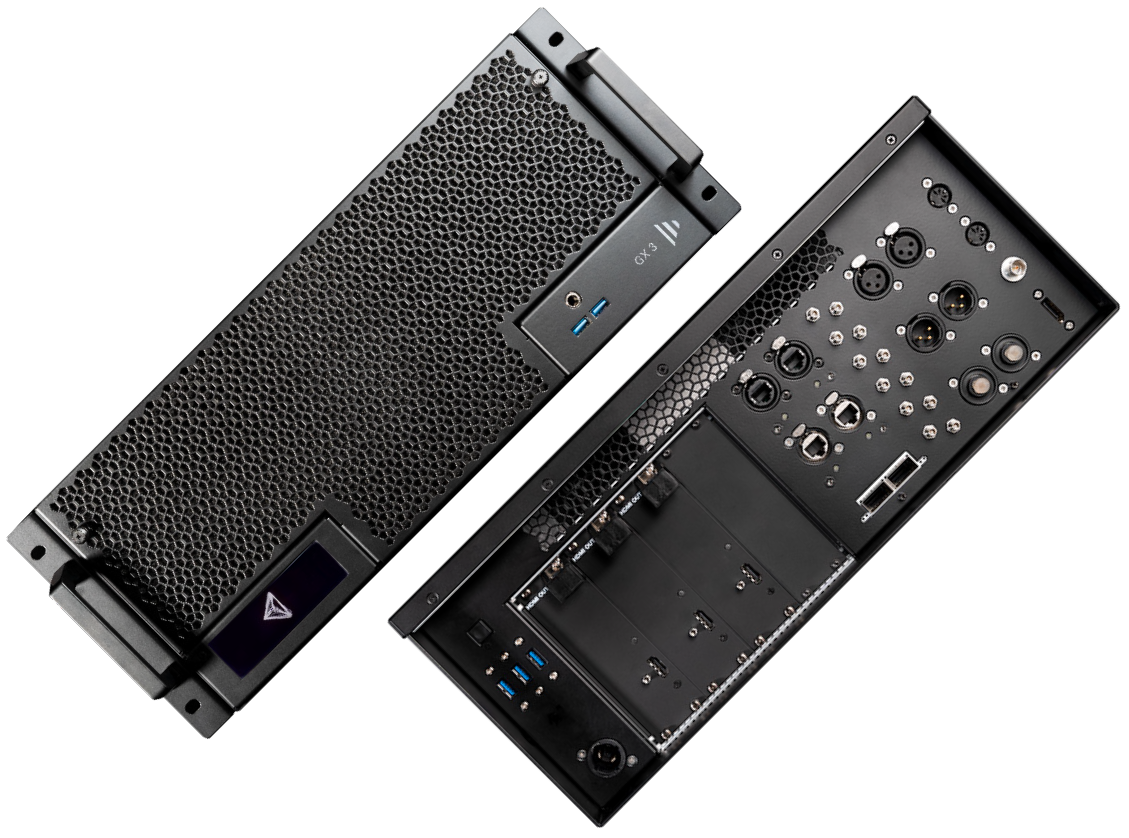

DISGUISE GX 3
Take live events to the next frontier
GX 3 is the premier media server for touring artists aiming to exceed past performances with the most elaborate set designs ever witnessed.
Video input
3x 12G inputs or 12x 3G inputs (HD-BNC connectors)
Video output
3x 4K outputs (with integrated EDID management)
Audio I/O
Balanced XLR (circular 3-pin connector) - 2x in, 2x out
Analogue (1/4 headphone jack) - 1x in
General Network
1x 1GbE/sec & 2x 10GbE/sec
High-speed network
2x 100GbE/sec port (QSFP28)
CPU
Intel Xeon 3.1Ghz
GPU
NVIDIA RTX A6000
Voltage
100-240V, 50-60Hz
For countries with variable power supply we recommend a UPS to provide a consistent voltage
Power consumption
Peak 700W
Mounting options
4U 19" rack mount
Storage
1x 3.84TB Removable NVMe SSD (upgrades available)
Memory
96GB RAM (6x 16GB)
Operating system
Windows 10 IoT Enterprise GAC

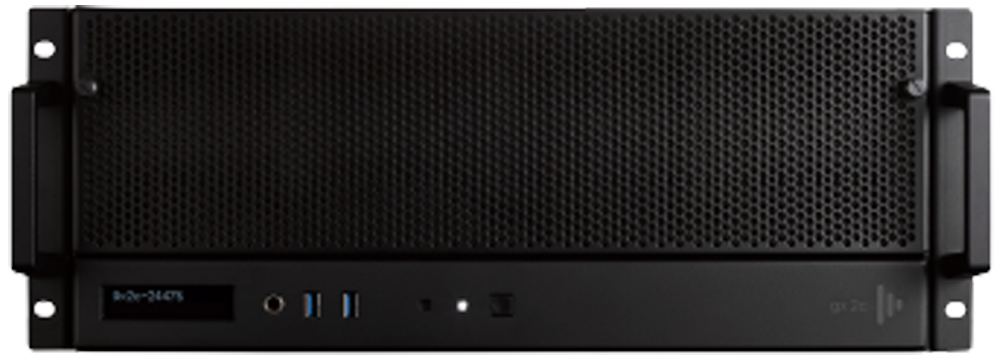

DISGUISE GX 2C
Think fast with more memory & capacity
With more GPU processing power to cope with increasing creative demands and technological advances.
Video input
8x 3G-SDI or 2x 2160p (Quad Split) (HD-BNC connectors)
Video output
1x DisplayPort 1.2 (GUI) & 2x VFC Output Slots
Ships standard with HDMI 2.0 VFC cards
Audio I/O
2x Balanced XLR Output, 2x Balanced XLR Input, 1x 1/4" Headphones Jack
General Network
1x Gigabit LAN
High-speed network
1x Gigabit LAN
CPU
Intel® Xeon® Quad-Core 3.7Ghz
Voltage
100-240V, 50-60Hz
Power consumption
720VA @ 240V, 50Hz (max)
Mounting options
4U 19" rack mount
Storage
4TB SSD
Memory
64GB DDR4 RAM
Operating system
Windows Enterprise SAC

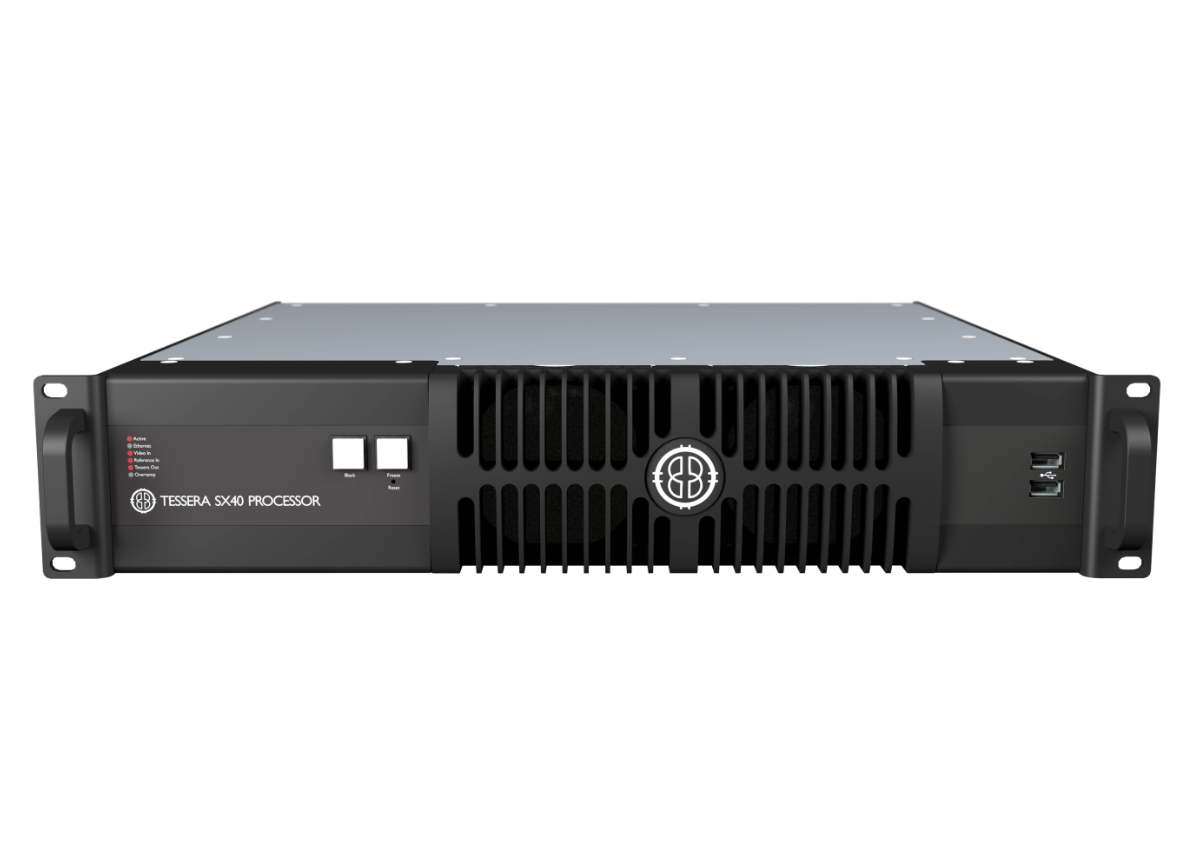

BROMPTON TESSERA SX40 LED PROCESSOR
Big, Bright, Bold Projects
The Brompton Tessera SX40 is the gold standard in 4K LED processing. Trusted on global tours, high-end virtual productions, and large-scale live events, it’s built to deliver uncompromising visual performance. At iMAG, we deploy the SX40 across a wide range of projects, from HDR virtual production volumes and film sets to immersive brand activations, because it simply performs. Every time.
Paired with the Tessera XD Distribution Unit, this processor simplifies cabling for large LED walls and offers total control and flexibility with real-time colour management, frame remapping, and ultra-low latency. Whether it’s a pixel-perfect festival build or a next-gen XR stage, the SX40 helps push creative boundaries with total confidence.
Video input
1 x 12G-SDI or up to 4 x 3G-SDI (supporting up to 4K60)
Video output
Up to 9 million pixels per processor
Max width: 4096 pixels, Max height: 2160 pixels
Connectivity
10GbE link to Tessera XD for simplified distribution
Front panel USB and Ethernet for configuration
Colour & Calibration
Brompton’s Dark Magic™ for superior low-brightness performance
New Paragraph
OSCA™ (On-Screen Colour Adjustment)
New Paragraph
Frame Remapping for XR workflows
New Paragraph
ShutterSync® for perfect camera sync in VP
Control & Monitoring
Web UI and Tessera software with intuitive interface
Mounting options
2U rackmount chassis
New Paragraph
Dual PSU for redundancy

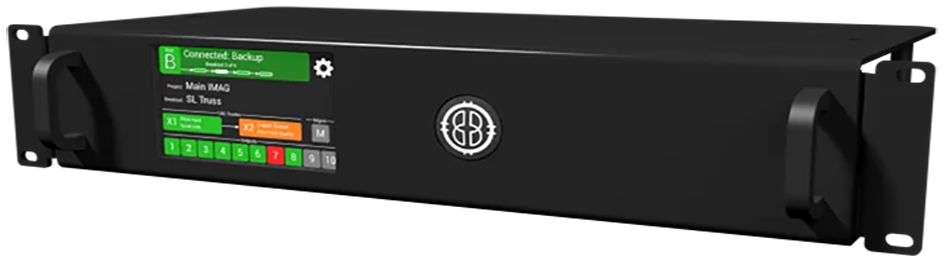

BROMPTON TESSERA XD
Data Distribution Designed for LED
The Tessera XD 10G data distribution unit delivers a flexible and sophisticated single-box solution designed specifically for the challenges of large LED display systems.
Together with the Tessera SX40 LED processor, the XD provides a powerful toolkit for easily and cost-effectively supporting the biggest LED projects. The XD reduces the mess, minimises points of failure, and provides precision control across distributed systems. For us, it's essential kit when the project gets large or the layout gets clever.
Input
1 x 10G Ethernet input (from Tessera SX40 or SX4)
Dual fibre and copper connectivity supported (SFP+ module or RJ45)
Output Capacity
3 x 1G Ethernet outputs (compatible with Brompton Tessera panels)
Supports up to 525K pixels per port
Each port independently assignable in the Tessera software
Connectivity
10GbE link to Tessera XD for simplified distribution
Front panel USB and Ethernet for configuration
Key Features
Native integration with Tessera processors (plug-and-play setup)
New Paragraph
Intelligent data distribution for complex topologies
New Paragraph
Front panel indicators for port status and diagnostics
New Paragraph
Rugged, modular design suitable for touring and live environments
Connectivity & Management
Managed via Tessera processor interface
Supports loop-through to other XD units for extended runs
Mounting options
1U rackmount unit

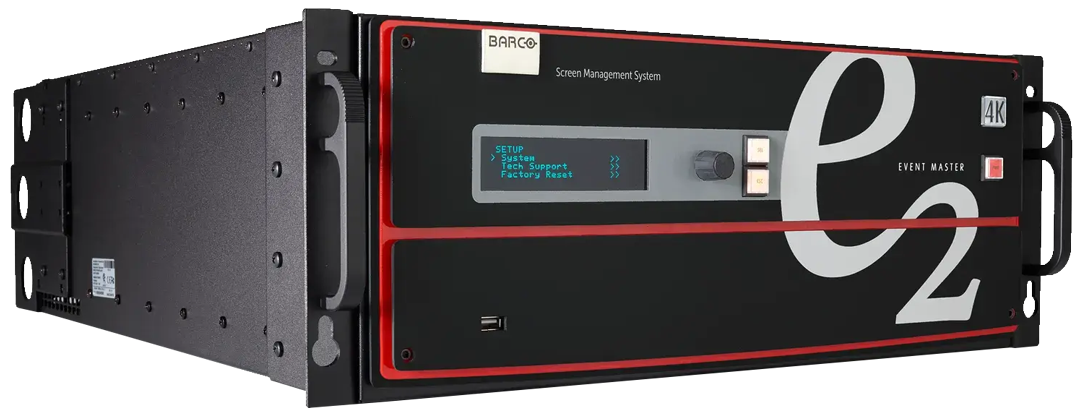

Ultimate 4K Screen Management for Large-Scale LED, Broadcast, and Live Events
The Barco E2 Gen 2 is the professional standard for large-format screen management. Built for maximum performance and flexibility, it’s a powerful multi-screen processor capable of handling native 4K60 resolution across all inputs and outputs.
This second-generation system expands on Barco’s industry-leading Event Master platform, offering increased layer capacity, expanded I/O, and even tighter integration with LED workflows. It supports seamless switching between multiple sources, dynamic layering, blending, custom layouts and advanced transitions — all with pixel-perfect accuracy and sub-frame latency. With true 4K60 processing, fully modular design, and tour-ready reliability, the E2 Gen 2 allows our team to deliver complex screen control with total confidence.
Inputs
U40 inputs via 8 input cards (Event Master series cards)
Up to 16 x 4K inputs - each input card supports up to 2x 4K@60p
16 x SD/HD/3G/6G/12G connectors
12 x HDMI 2.0 (600 MHz max)
12 x DisplayPort 1.2 (600 MHz max)
Outputs
Up to 18 output connectors among 4 output cards (Event Master series 2 cards) {each output card supports up to 2x 4K@60p} d 4 x SDI (SD/HD/3G/6G/12G), d 13 x HDMI (up to 600 MHz) d 1 x DisplayPort(up to 660 MHz)
Genlock
Analog reference input/loop on BNC connectors; bi-level and blackburst at SD and tri-level at HD
S3D Sync: 4x input Din connector, 2x output Din connector
Weight
31 kg / 68 lbs
Mounting options
4U Rackmount
