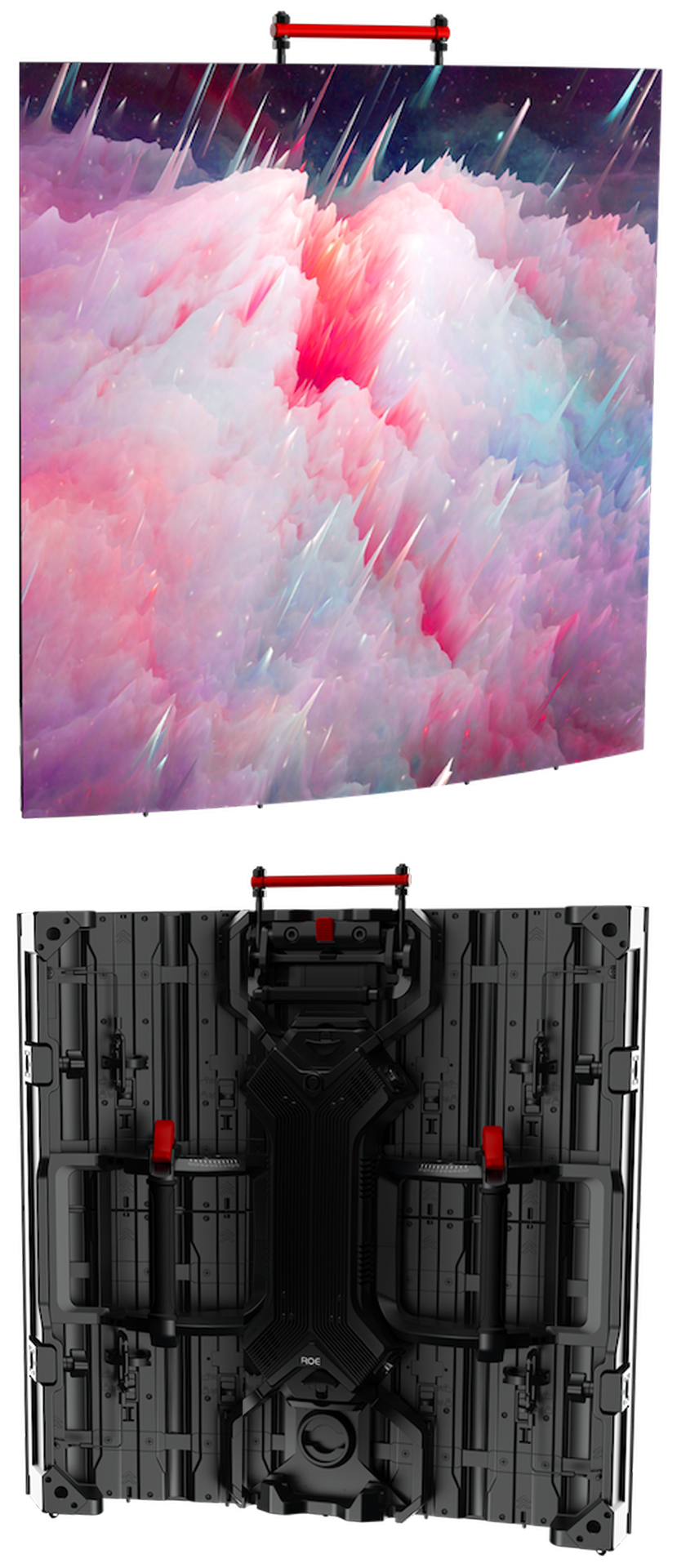

ROE RUBY CURVED 2.6

RUBY C 2.6

High-Resolution Indoor Curved LED Screen Hire

The ROE Ruby Curve 2.6mm is a cutting-edge indoor LED panel designed for projects where creative flexibility meets visual excellence. Featuring a tight 2.6mm pixel pitch, calibrated brightness up to 1500nits, and a unique ±30° curve capability, the Ruby Curve enables the creation of dynamic, wraparound visuals that captivate audiences. Whether you're building a curved backdrop for a fashion show, a fully immersive experiential space, or a seamless set for virtual production, this panel delivers consistent, high-resolution imagery with a robust yet lightweight form factor. Available for hire at iMAG, the Ruby Curve is powered by Brompton processing and integrates flawlessly into bespoke environments, making it the perfect choice for brands, agencies, and production teams looking to push boundaries.

ROE RUBY C 2.6 SPEC

Pixel Pitch 2.6mm
Max Brightness Calibrated 1500 nits
Panel Dimensions 500 x 500 x 108mm
Panel Resolution (H x W) 192 x 192
Weight Per Panel 8.3kg
Power Consumption Max / Average 160W / 80W
Transparency Solid
Processing Platform Brompton
Curving (Concave & Convex) Concave 30º - Convex 30º
Max Hanging Panels 20
Max Stacking Panels 12
LED Configuration SMD 1515 Black
Viewing Angle Vertical 140º
Viewing Angle Horizontal 140º
BTU Max / Average 545 / 250
Refresh rate 7680 Hz
Gray Scale 16 Bit
Frame Material Magnesium
Operational Temp / Humidity -20º -45ºC, 10~90%RH / -4º -113ºF, 10~90%RH
IP Rating (Front / Rear) Indoor

RECENT PROJECTS WITH THE ROE RUBY C 2.6

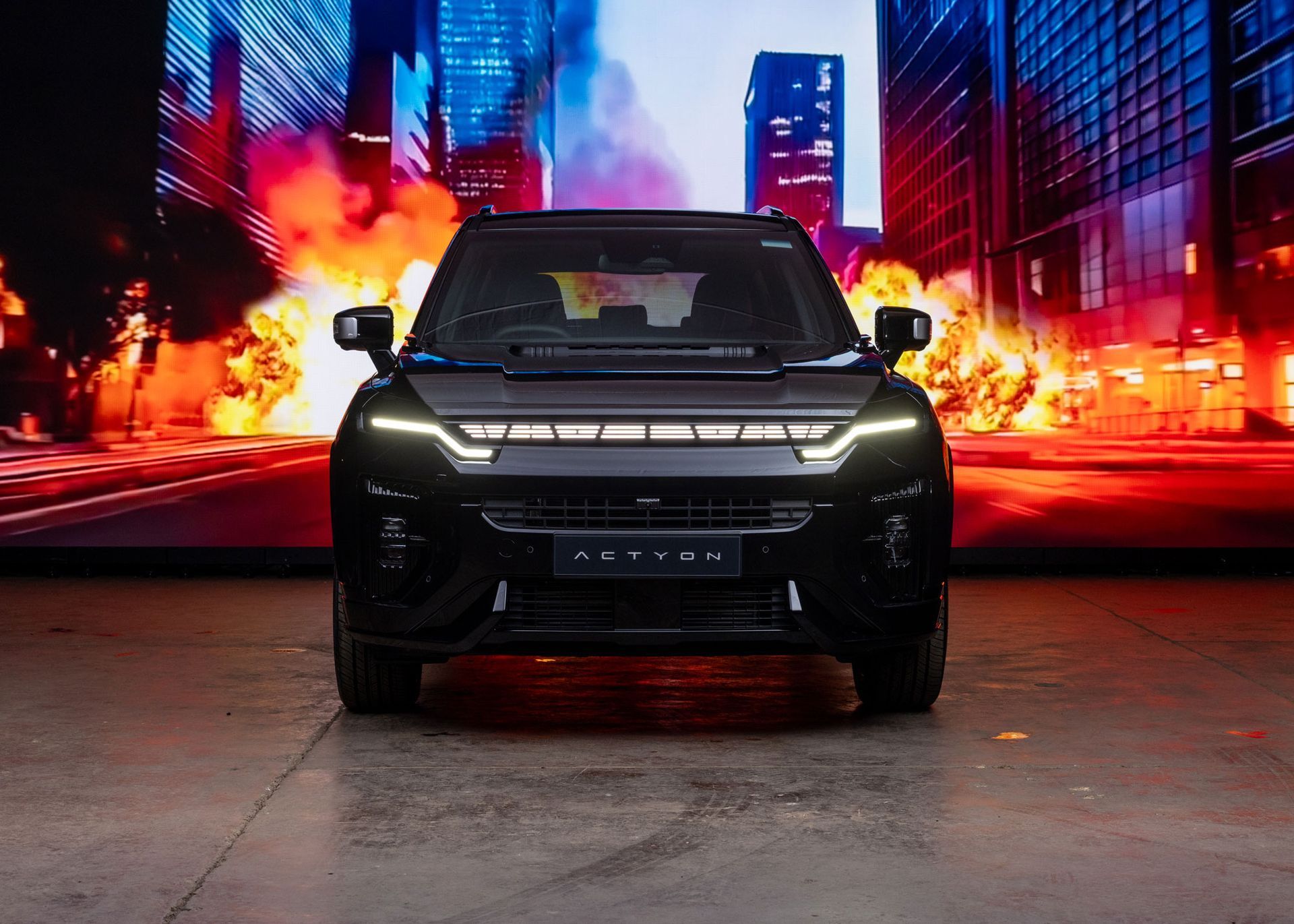

KGM Actyon in front of ROE Ruby LED Screen

KGM Actyon Launch Marketing Campaign

April 21, 2025
Discover how iMAG powered the KGM Actyon coupe SUV’s launch marketing campaign with ROE Ruby LED screens—delivering flawless visuals across TV, cinema, and digital channels.
XR logo image

XR in focus: The reality of XR studios

By Frederick King • January 7, 2025
XR stands for extended reality. Rather than it being just virtual reality, an XR stage encompasses many different mediums of virtual. The XR stages that have been developed in the last two years use LED screen technology to create the environment around a person or subject.
all the old knives cover

SoCal meets UK LED Virtual Production

By Frederick King • January 7, 2025
iMAG blend their state-of-the-art mobile LED virtual production facility using their ROE Black Onyx 2 matched with the Brompton SX-40 and driven by the disguise media servers to create this ultra realistic backdrop from Southern California. The team also had to build a massive, curved screen with no weight loading in the roof.
Show More

Pick our brains or hire iMAG today...

Sometimes, it’s just easier to pick up the phone...

Drop us your details with a brief explanation of your project and we’ll get right back to you!
